Father of Tubular Designs: The Structural Brilliance of Fazlur Rahman Khan

Fazlur Rahman Khan (1929–1982) was a Bangladeshi-American structural engineer and architect whose groundbreaking innovations transformed high-rise construction. Often hailed as the "father of tubular designs," Khan's work revolutionized modern skyscraper design, paving the way for taller and more efficient structures that have come to define urban skylines worldwide.

Born on April 3, 1929, in Dhaka, then part of British India and now the capital of Bangladesh, Khan displayed a natural talent for mathematics and science from an early age. He pursued civil engineering at Bengal Engineering and Science University in Shibpur, India, where his academic prowess began to take shape. In 1952, Khan received a Fulbright Scholarship and a Pakistani government scholarship, which enabled him to study in the United States. He went on to earn two master’s degrees. One in structural engineering and another in theoretical and applied mechanics, alongside a Ph.D. in structural engineering from the University of Illinois at Urbana-Champaign.

In 1955, Khan began his professional journey at Skidmore, Owings & Merrill (SOM), one of the most prominent architectural and engineering firms in the United States. During his tenure at SOM, Khan introduced a series of innovative approaches that revolutionized structural engineering, establishing himself as a visionary in the field.

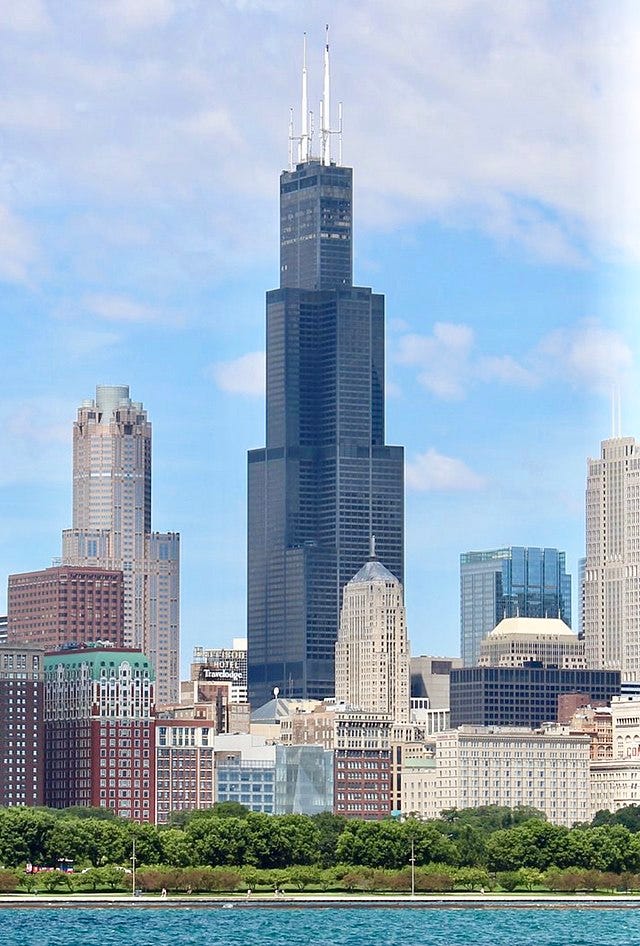

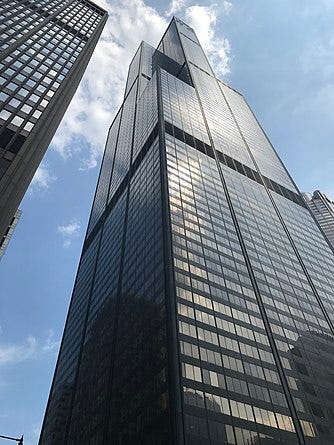

The Willis Tower

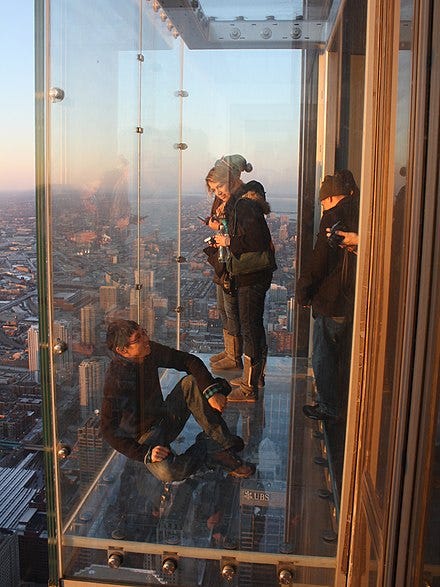

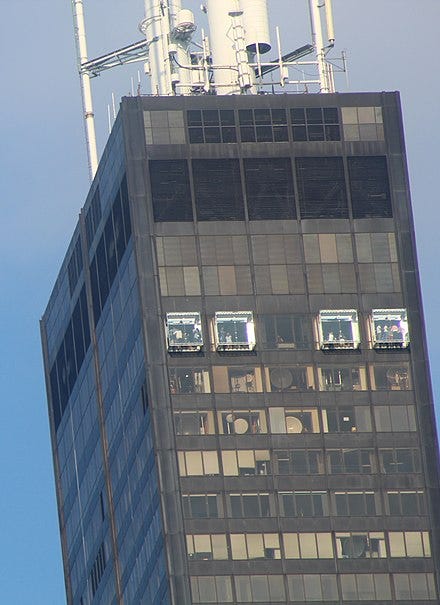

The Willis Tower "Skyboxes"

Khan’s most celebrated contribution to architecture was his development of the tubular structural system, which treated a building as a hollow cylinder capable of withstanding lateral forces such as wind and seismic activity. This design not only allowed for taller buildings but also offered more open and flexible floor plans, redefining the possibilities of high-rise construction. The framed tube system, one of his innovations, utilized closely spaced perimeter columns connected by deep spandrel beams, creating a rigid framework that effectively resisted lateral loads. The trussed tube system incorporated exterior diagonal bracing, enhancing the building's stiffness and reducing the need for interior columns, which allowed for greater flexibility in interior design. The bundled tube system, perhaps his most iconic innovation, connected multiple tubes for added stability and strength. This approach was exemplified in the design of the Willis Tower, formerly known as the Sears Tower, in Chicago.

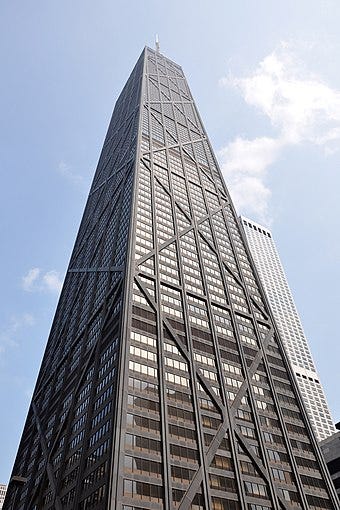

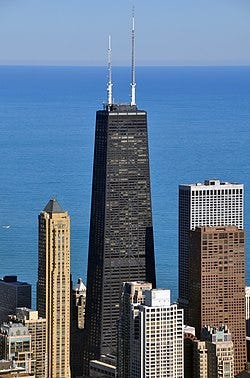

The John Hancock Center

The John Hancock Center in Chicago, completed in 1969, is one of Khan's most famous works. This 100-story skyscraper employed the trussed tube system, with its distinctive X-bracing on the exterior. This design not only provided structural efficiency but also contributed to the building’s iconic architectural aesthetic. Another groundbreaking project, the Willis Tower, completed in 1973, was the tallest building in the world at the time. Its bundled tube design consisted of nine interconnected square tubes, providing exceptional structural stability and offering flexible floor space configurations that set new benchmarks in skyscraper engineering.

Fazlur Rahman Khan's work has left an indelible mark on the field of structural engineering and architecture. His innovative designs revolutionized the construction of tall buildings, making them more efficient, cost-effective, and architecturally striking. By integrating structural integrity with aesthetic appeal, Khan set new standards for modern architecture. In recognition of his achievements, the Council on Tall Buildings and Urban Habitat (CTBUH) created the Fazlur R. Khan Lifetime Achievement Medal, which honors individuals who have made significant contributions to tall building design and construction.

The visionary contributions of Fazlur Rahman Khan continue to inspire architects and engineers across the globe. His pioneering tubular designs have reshaped the skylines of cities and the possibilities of modern architecture. Khan’s legacy is not just in the buildings he helped create but also in the innovative spirit he brought to the field of engineering, ensuring that his influence endures in the built environment of today and tomorrow.
